mackintosh probe test procedure


The instrument is a cost-effective way to determine the thickness of soft deposits like peat. 3The equipment is set up on the ground.


Probe Machintosh

Conclusion The probe jkr mackintosh is used to determine the thickness of the inappropriate material to be removed and also for the preliminary landfill design limited to about 15 me and should be recorded.

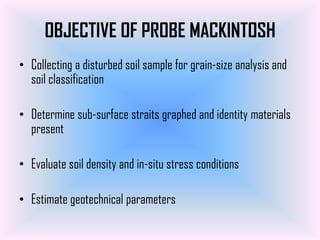

. Iii To know the ground plan iv To estimate geotechnical parameters. Mackintosh probe test is carried out to determine the strength of the soil. Weight dropping through a free height of 280mm.

The cone diameter is measured in SI unit. One of the tools that can be used for research purposes especially for soil investigation is Mackintosh Probe. 1 To establish the general nature of.

The probe is unable to penetrate into medium strength soil and gravelly ground. The equipment is set up on the ground. The Macintosh Probe Test is used to determine the bearing capacity that is the strength of the soil.

In each series two three or four Mackintosh tests were repeated at very close proximity in plan less than 05 m. I To collect a disturbed soil sample for the grain size analysis and soil classification. Grease is sweep up for an easy dissembles later 3.

The cone diameter is measured in the SI unit. Equipment for the test is assembled. Lift the hammer to the maximum position and then release.

Count the number of blows that causes the rod to penetrate 03m. From this we learn. In this channel we will try to explain about civil engineeringcivil engineering is my passionhonesty is very important in this sectorMackintosh probe test.

Mark tools 4 Probe Mackintosh Test 50 Procedure 1. Measure every 03m length of the steel rod and mark it with a chalk. O The boring rods and hammer are joint using rod coupling.

The importance of probe mackintosh test is. Hi all I would like to ask if anyone has an idea of a textbook in English that explains the procedure for using the results of the Mackintosh Probe Test in order to find the bearing pressure of the soil and the value to use for construction. 1Equipment for the test is assembledThe cone diameter is measured in SI unit.

This is a light dynamic test and the cone is driven directly into the soil by driving a hammer 5 kg. To determine this a series of tests were carried out at each site. Repeatability of Mackintosh Probe results The repeatability of Mackintosh Probe results is an important consideration.

O Equipment for the test is assembled. Weight dropping through a free height of 280mm. The Mackintosh prospecting tool is made up of rods with a driving point at the bottom and a light hand-operated driving hammer at the top that may be linked together using barrel connections.

Distance of 03 m is measured and marked on the rod start from the tip of the cone. MackintoshJKR probe test This is a dynamic penetrometer test used to check the consistency of the subsoil. A Mackintosh probe is a lightweight portable penetrometer that is designed to be a tool to investigate the soil bearing capacity Syahril Azim 2015.

The results obtained from the test provide a rough estimate of the soil layer at that point. Distance of 03 m is measured and marked on. HAND AUGERING ROTARY DRILLING MECHANICAL AUGERING PERCUSSION DRILLING SEISMIC RESISTIVITY FIELD DATA COLLECTION RESULTS INTERPRETATION.

Grease is sweep up for an easy dissembles later. The cone diameter is measured in SI unit. Record the data for the number of blows for every 03m penetration into the Mackintosh Probe test form.

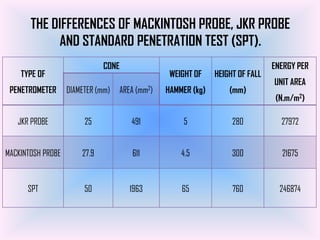

The boring rods and hammer are joint using the rod coupling. The procedure of the old Mackintosh Probe is as follows. Mackintosh Probe which has 30 cone penetrometer while JKR Probes has 60 cone penetrometer.

This is a light dynamic test and the cone is driven directly into the soil by driving a hammer 5 kg. The boring rods and hammer are joint using the rod coupling. Mackintosh Probe in site.

Ii To evaluate the soil density and in-situ stress condition. 2Distance of 30m is measured and marked on the rod start from the tip of the cone. Pressure Testing 10 Preventive Maintenance 10 Project Planning 10 Pump Installation 4 Quality Management 44 Risk Assessment 22 Roadworks 17 Stainless Steel Fabrication 9 Technical Articles 62 Technical Calculations 3 Templates 25 Test Reports Forms 13 Testing Commissioning 100.

The applications of the Mackintosh probe are by assembling the equipment marked on each 03m on the rods set up the equipment on the ground pulled up the hammer until maximum height dropped freely to driven the rod and cone into the soil continued until the blow reach more than 400 blows per 03m penetration or the depth reached 15m. Hi all I would like to ask if anyone has an idea of a textbook in English that explains the procedure for using the results of the Mackintosh Probe Test in order to find the bearing pressure of the soil and the value to use for construction. 4The hammer is pilled until it reached the maximumThe hammer is dropped freely to drive the cone into the soil.

JKR MACHINTOSH PROBE CONE PENETRATION TEST FIELD DATA COLLECTION RESULTS INTERPRETATION TEST PITS TRENCHING SHALLOW BORING. Equipments for the test are assembled. The Macintosh probe test is used for research purposes especially soil exploration.

Mackintosh probe which has 30 cone penetrometer while JKR probes has 60 cone penetrometer.
